The Invention of the Chimney - Sarah Woodbury

The Invention of the Chimney

The chimney was invented at some point in the Middle Ages, probably in the 11th century. It was a huge breakthrough in home/castle construction, and one of the most important inventions in a period with many. Northern Europe is cold, and people needed to keep warm.

Maybe this seems like a strange topic for a blog post, but I’m sitting here by my nice warm fire, typing into my laptop, while it’s about 15 degrees outside (F).  I am not a medieval person, but I hate being cold and get grumpy if my house is below 68 degrees (and with the fire, I can get it a lot warmer than that).

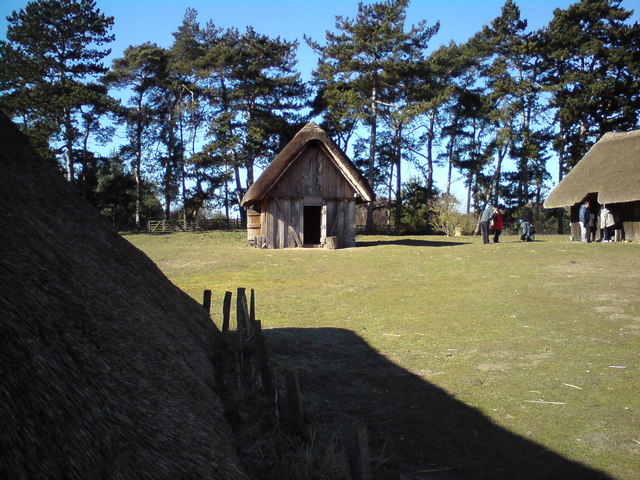

Round huts in which many early peoples lived did not have chimneys. They had fire pits in the center of the room, with or without a hole in the roof for the smoke to leave. According to the re-enactors at the National Museum of Wales, not having a hole wasn’t as bad as it sounds. The smoke did gradually filter through the thatch, and in so doing, had multiple benefits for the inhabitants of the hut: sparks were smothered; bugs living in the thatch were killed; the smoke waterproofed the thatch; and finally, meat left in the ceiling could be smoked.

That said, houses were smoky.

Typically, the Romans did have the knowledge of chimneys (for baking), and otherwise had a hypocaust venting system. “During the Roman era, some houses were warmed with interior pipes laid under floors and within walls, and bakeries had flues that piped smoke outside the building.”   They also used braziers, which could be moved from room to room and to which you could sit closer than a real fire. And yes, they thought a posting to the UK was the worst in the Empire.

“With the Norman Invasion (in 1066) came a new concept into England: two-story houses [though obviously, if the Normans were building these in Normandy, they were hardly a new concept!]. An upstairs meant that you couldn’t have a fire in the middle of the floor anymore, and you needed to draw the smoke outside instead of straight up, so the fire was moved to a niche in the wall. (In stone houses, walls were so thick that the excavation of a fireplace did not effect the external appearance at all.) At first, holes were poked in the exterior wall to allow smoke to escape; eventually, flues were constructed to help control the downdraft. During the Gothic era, up to the end of the 14th century, some grander homes installed stone hoods to facilitate ventilation.”

The first chimneys were constructed in castles.  The first one we know of is from the 12th century.

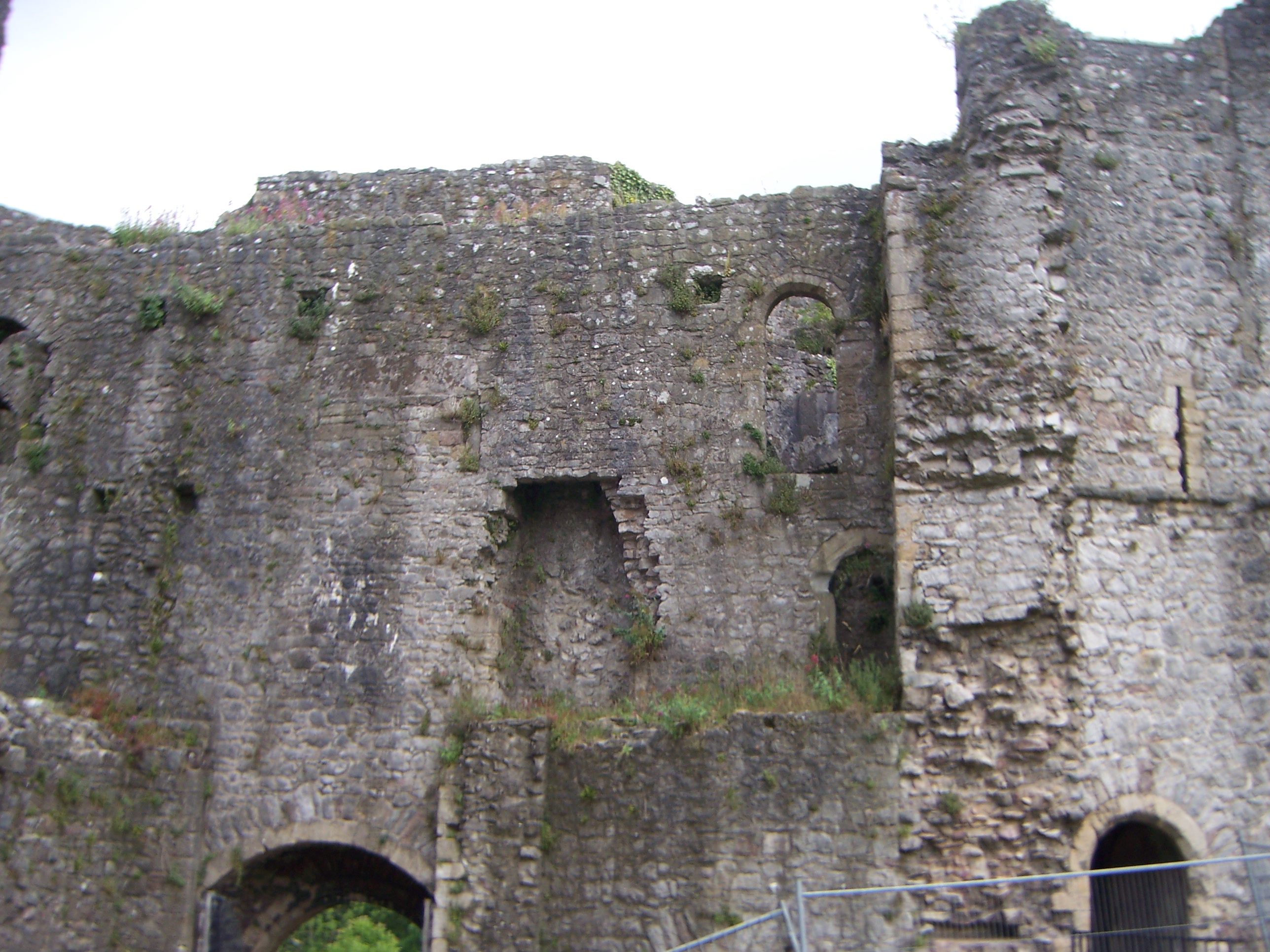

“If the later Middle Ages had made only slight improvements in lighting over earlier centuries, a major technical advance had come in heating: the fireplace, an invention of deceptive simplicity. The fireplace provided heat both directly and by radiation from the stones at the back, from the hearth, and finally, from the opposite wall, which was given extra thickness to absorb the heat and warm the room after the fire had burned low. The ancestor of the fireplace was the central open hearth, used in ground-level halls in Saxon times and often into later centuries. Such a hearth may have heated one of the two halls of Chepstow’s 13th-century domestic range, where there are no traces of a fireplace. Square, circular, or octagonal, the central hearth was bordered by stone or tile and sometimes had a backing of tile, brick or stone. Smoke rose through a louver, a lantern-like structure in the roof with side openings that were covered with sloping boards to exclude rain and snow, and that could be closed by pulling strings, like venetian blinds. There were also roof ventilators. A couvre-feu (fire cover) made of tile or china was placed over the hearth at night to reduce the fire hazard.

When the hall was raised to the second story, a fireplace in one wall took the place of the central hearth, dangerous on an upper level, especially with a timber floor. The hearth was moved to a location against a wall with a funnel or hood to collect and control the smoke, and finally, funnel and all, was incorporated into the wall. This early type of fireplace was arched, and set into the wall at a point where it was thickened by an external buttress, with the smoke venting through the buttress. Toward the end of the 12th century, the fireplace began to be protected by a projecting hood of stone or plaster which controlled the smoke more effectively and allowed for a shallower recess. Flues ascended vertically through the walls to a chimney, cylindrical with an open top, or with side vents and a conical cap.”

16 Replies to “The Invention of the Chimney”

  1. Facinating stuff. I actually did some fireplace research for one of my novels I’m working on and discovered how the effecient heating fireplace contruction we use now happened at about the same time as the Franklin stove was invented. Thus the Rumford Fireplace was pretty much obsolete the moment it was invented. *grin*

    Now… is there a way to subscribe to this blog?
    (Oh I pope over here from MWi after he made a comment about you dressign your men up in chainmail and armor and just had to check you out *giggles* Plus my MC in the novel I mentioned above, her name is Sarah too.)

    :} Cathryn

    1. If you use Google reader, just paste the link to the blog into their ‘subscribe’ box. I also have a link to the RSS feed in the side bar, too, which should give you some choices in how to subscribe. Thanks for commenting!
